CORR-Variables

The CORR-Variables package is a Python package for extracting and analyzing data from the Charité Outcomes Research Repository (CORR). It functions as a connector on top of the Hadoop-based Health Data Lake (HDL). It preprocesses the data into clinically meaningful and quality-checked variables to streamline research with real-world data at our Institution.

Installation

The CORR-Vars package is pre-installed and regularly updated on the IMI server (s-c01-imi-app01.charite.de).

Make sure to use the correct Python environment.

conda activate /data02/projects/icurepo/.pkg/env10

To install the package on your local machine, run the following command. CAVE: This only works if you have access to the private GitHub repository.

pip install git+https://github.com/thielem/corr-vars.git

API Reference

• Cohort
  • Cohort
  • Cohort Workflow
• Variables
  • Base Variable Class
  • Native Variables
  • Derived Variables
• Utils
  • json_list_sql()
  • filter_by_condition()
  • merge_consecutive_stays()
  • df_find_closest()
  • aggregate_column()
  • parse_select()
  • parse_col_list()
  • convert_interval_sql()
  • get_cb_values()
  • build_base_query()
  • get_time_series()
  • parse_time_args()
  • sql_to_pandas()
  • get_variables()
  • extract_df_data()
  • merge_consecutive()
  • extract_with_co6_parent()

Quick Start

# Will import all public classes (Cohort, Variable, etc.)
from corr_vars import *

# Initialize a cohort
cohort = Cohort(obs_level="hospital_stay")
cohort.load_default_vars()

# View the first 5 rows
print(cohort.obs.head())

Core Components

Cohort

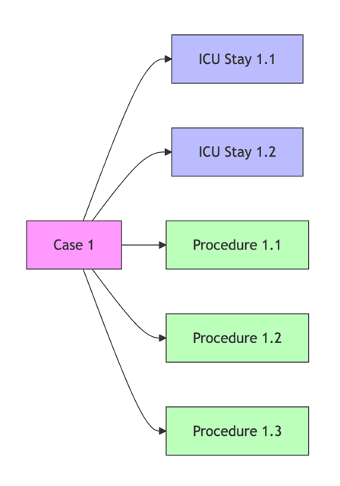

The main class for handling patient cohorts. Supports different observation levels:

Observation Levels

Observation Level	Primary Key	tmin	tmax
hospital_stay	case_id	hospital_admission	hospital_discharge
icu_stay	icu_stay_id	icu_admission	icu_discharge
procedure	procedure_id	op_start_dtime_any	op_end_dtime_any

cohort = Cohort(obs_level="hospital_stay")

# Save cohort to file
cohort.save("my_cohort.corr")

# Load cohort from file
cohort = Cohort.load("my_cohort.corr")

# Export to CSV
cohort.to_csv("output_folder")

Variables

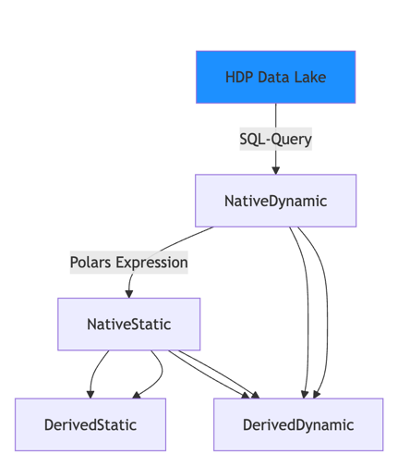

Different types of variables are supported:

• NativeDynamic: Time-series variables extracted from the database

• NativeStatic: Static variables from the database or simple aggregations based on NativeDynamic variables

• DerivedStatic: Computed static variables

• DerivedDynamic: Computed time-series variables

• Complex: Custom variables. Can be anything defined by the Python function provided by the user.

To view all available variables, we recommend using the Graphical Variable Explorer.

# Initialize cohort
cohort = Cohort(obs_level="icu_stay")

# Add static variables
# These are added to cohort.obs DataFrame
cohort.add_variable('any_proning_icu')

>>> cohort.obs.head()
    icu_stay_id  any_proning_icu ...
0   12345        True ...
1   12346        False ...
2   12347        True ...
...

# Add dynamic (time-series) variables
# These are added to cohort.obsm dictionary
cohort.add_variable('blood_sodium')

>>> cohort.obsm.keys()
['blood_sodium']

# Access time-series data
>>> cohort.obsm['blood_sodium'].head()
    icu_stay_id    recordtime        value
0   12345          2024-01-01 08:00  140
1   12345          2024-01-01 12:00  138
2   12345          2024-01-01 16:00  142
...

Development

The source code is available on GitHub: https://github.com/thielem/corr-vars

Authors

• Moritz Thiele

• Noel Kronenberg

• Dario von Wedel

Version

Current version: 0.2.0
